TRANSFORMER RECTIFIER ASSEMBLY, 2.4 KW, P/N 19520PS
This technical manual contains information pertaining to the variable power supply Model 19520PS, manufactured by Carl E. Holmes Company. This manual contains the schematic diagram, description, installation, operation and maintenance procedure for the power supply.

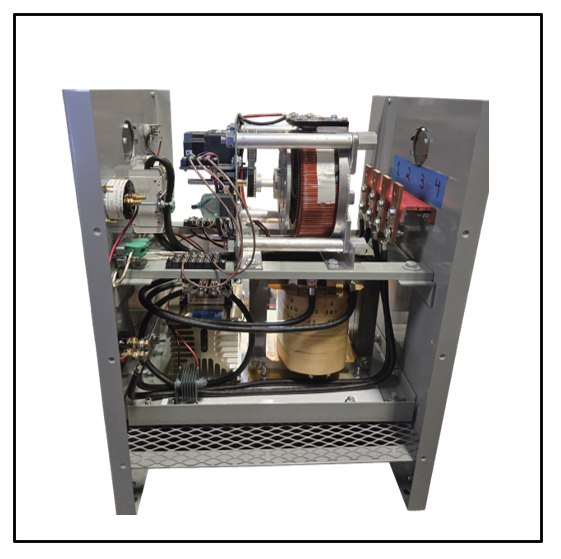

The power supply consists of a circuit breaker, a motorized variac, a single phase transformer, a four diode rectifier bridge assembly with one fan, a pilot light, an analog voltmeter, and an analog ammeter, a RAISE (GREEN) push button, a LOWER (BLACK) push button and a REMOTE CONTROL BOX.
Specifications:
- Input: 120 Volts AC, 1 PH, 60 Hertz, 20 Amps
- Output: 0 to 80 Volts DC ±10%, 30 Amps maximum
- Ripple: 50%
