SCR CONTROLLED TRANSFORMER RECTIFIER ASSEMBLY, 744 KW
Specifications:
- Transformer Rectifier Assembly: 900 KVA, 3 PH, 60 Hz, P/N 10344L
- Input: 460 VAC, 3 PH, 60 Hz, 1135 Amps, 900 KVA
- Output: 0 – 200 VDC, SCR Controlled, 3720 ADC continuous, 744 KW
- Electro-chlorination application
- Copper Windings
- One 6-diode Assy using 4000 Amps, 4500 PIV diodes with forced-air cooling fans.
- Three SCR assemblies using 1500 Amps, 1600 PIV SCRs.
- Potentiometer for voltage adjust and current limit.
- Water-cooled assemblies are not used.
- Enclosure
- Weight: 10000 lbs. or TBD
The block diagram of the transformer rectifier assembly is shown below:

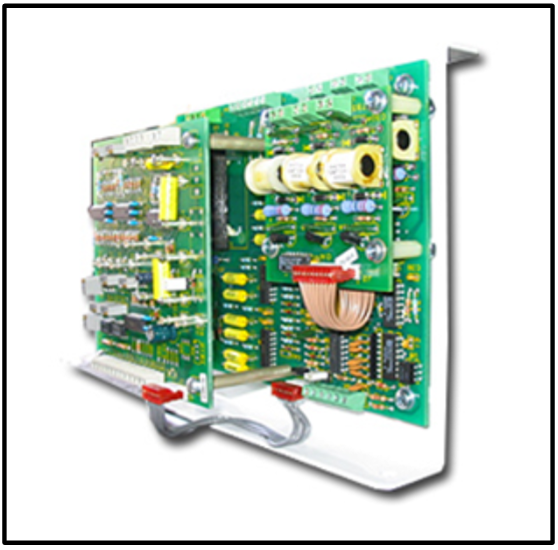

The photo of the SCR Controller is shown below:
To discuss your specific application, please call our number at (714) 624-4740, or send us an email at quote@lcmagnetics.com.
