TRANSFORMER RECTIFIER ASSEMBLY

OUTPUT 25 VDC, 200 AMPS, 500 KW, P/N 5816C

Specifications:

• Transformer Rectifier Assembly, 500 KW, P/N 5816C
• Input: 6210/6900/7590 VAC, 42 Amps, 3 PH
• Output: 250 VDC, 2000 Amps max
• A circuit breaker is installed on the output side
• Power ON Light installed on the enclosure
• Three single-phase transformers (167 KVA each) are used to make one three-phase 500 KVA transformer
• Output voltage and current are displayed on the voltmeter and ammeter
• NEMA 3R enclosure with IR Inspection Ports, 50″H x 90″W x 44″D
• The unit is rated for 115% load current continuously when operated at 104°F
• The unit is rated for 100% load current continuously when operated at 120°F
• The Unit is rated for 125% load current for 2 hours following a continuous operation at 100% current at 104°F
• The Unit is rated for 200% load current for 30 seconds following a continuous operation at 100% current at 104°F

The system block diagram is shown below:

Three single-phase transformers (167 KVA each) are used to make one three-phase 500 KVA transformer. The photo of a similar single-phase transformer is shown for reference:

A photo of the six diode bridge rectifier is shown below:

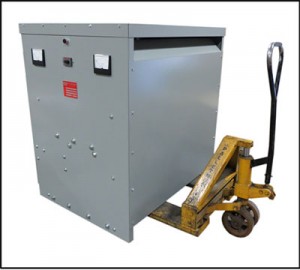

A photo of a similar unit is shown for reference only:

To discuss your specific needs, please contact us at (714) 624-4740, or send us an email at quote@cehco.com.
