3 PH (DELTA) SELENIUM SURGE SUPPRESSOR, P/N 6581C

Specifications:

  • 3 PH (Delta) Selenium Surge Suppressor, P/N 6581C
  • Input: 208 VAC L-L, Delta, 3 PH, 60 Hz
  • Plate size: 3” x 4”
  • Each plate is rated for 26 V, 53 Amps
  • Number of plates: 14 per section
  • Number of sections: 6
  • 3 PH, Non-Polar, Delta configuration, A-B-C = 208 VAC L-L

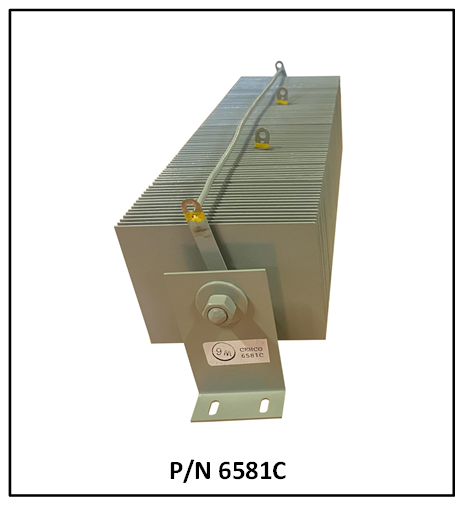

The photo of the 3 PH (Delta) Selenium Surge Suppressor is shown below:

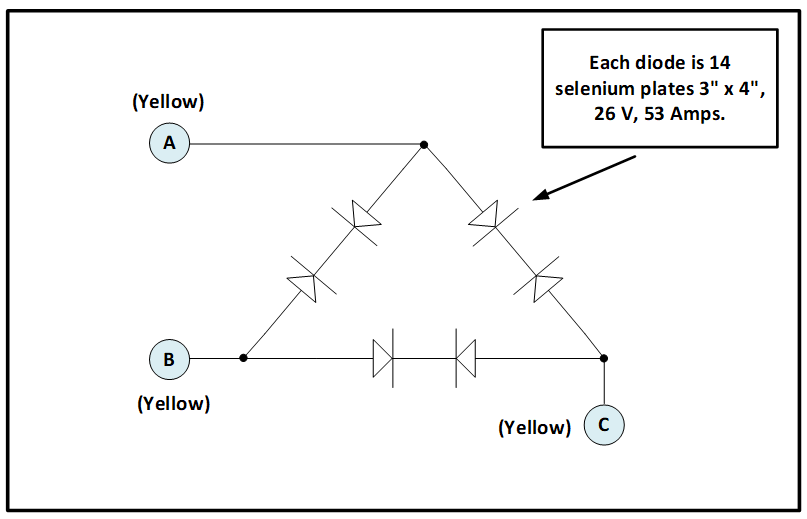

The schematic of the Selenium Surge Suppressor is shown below:
